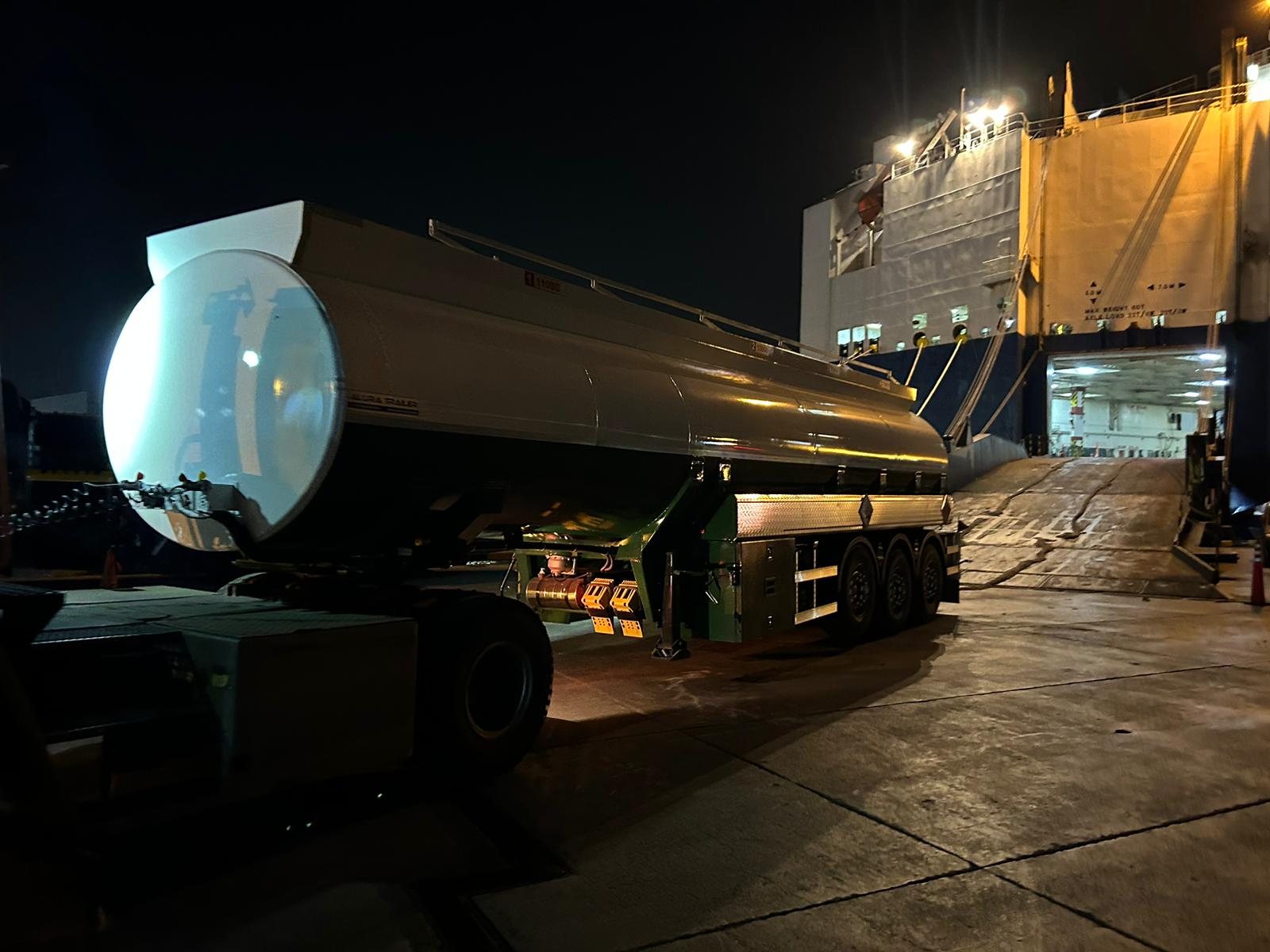

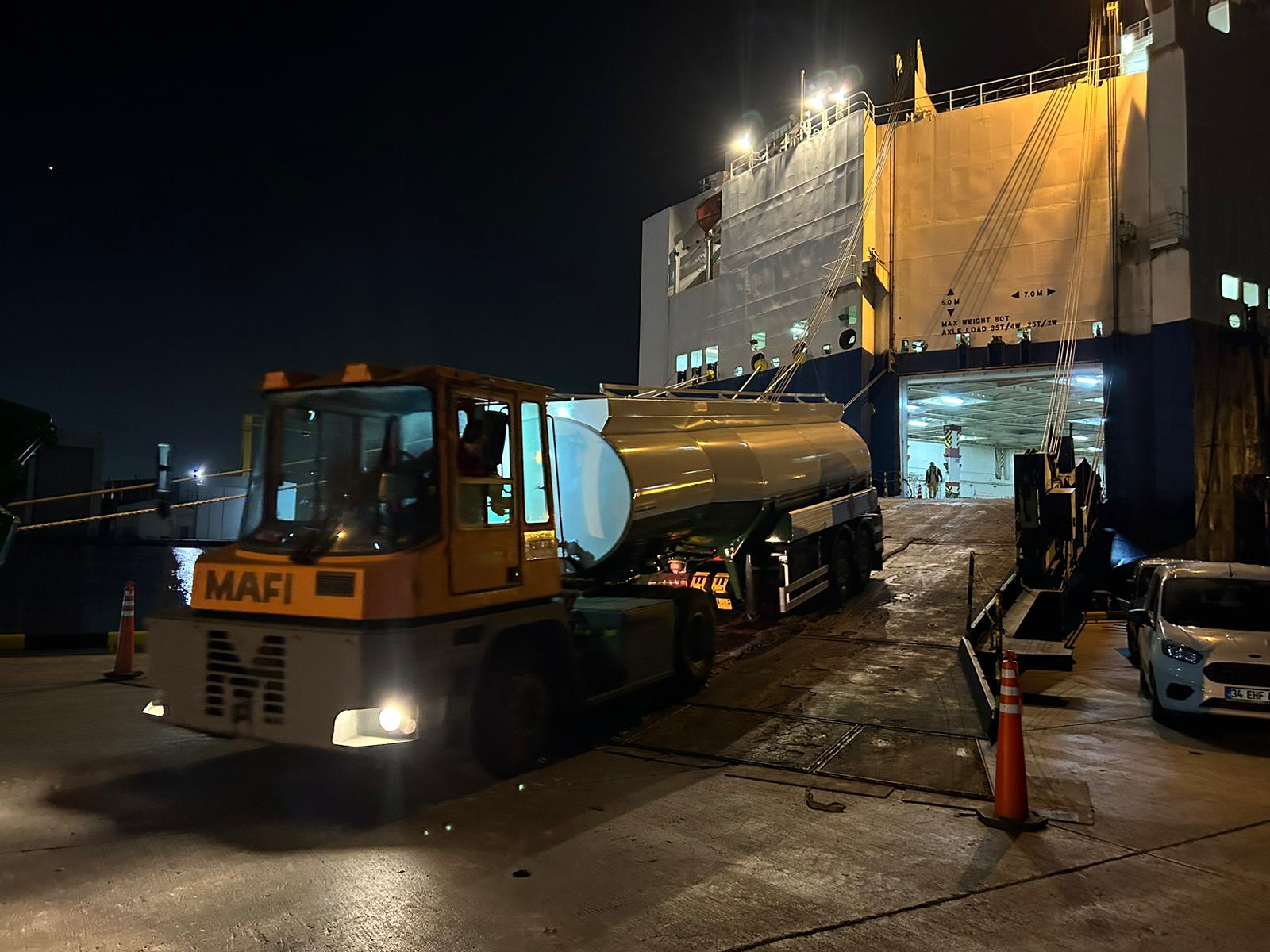

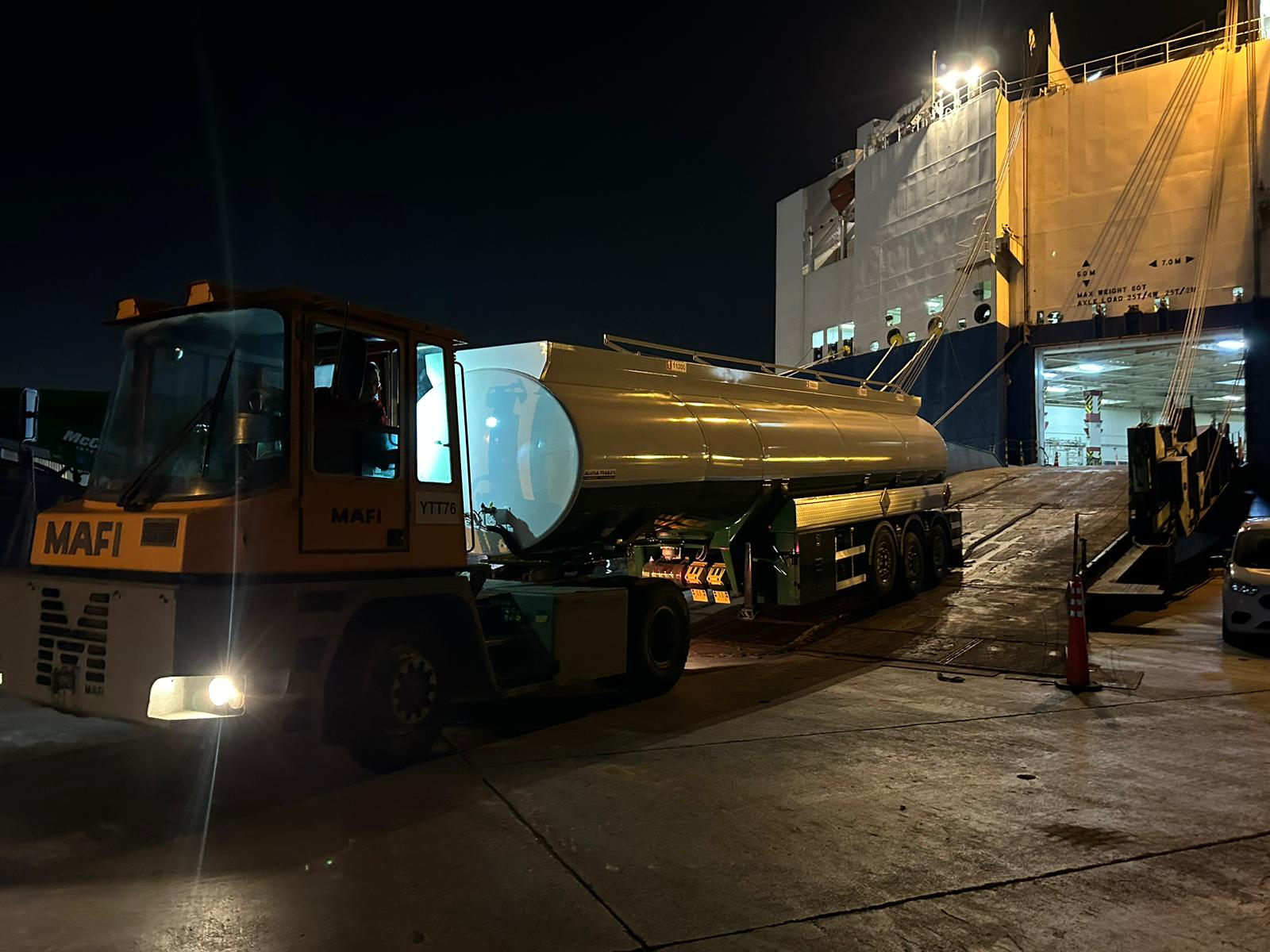

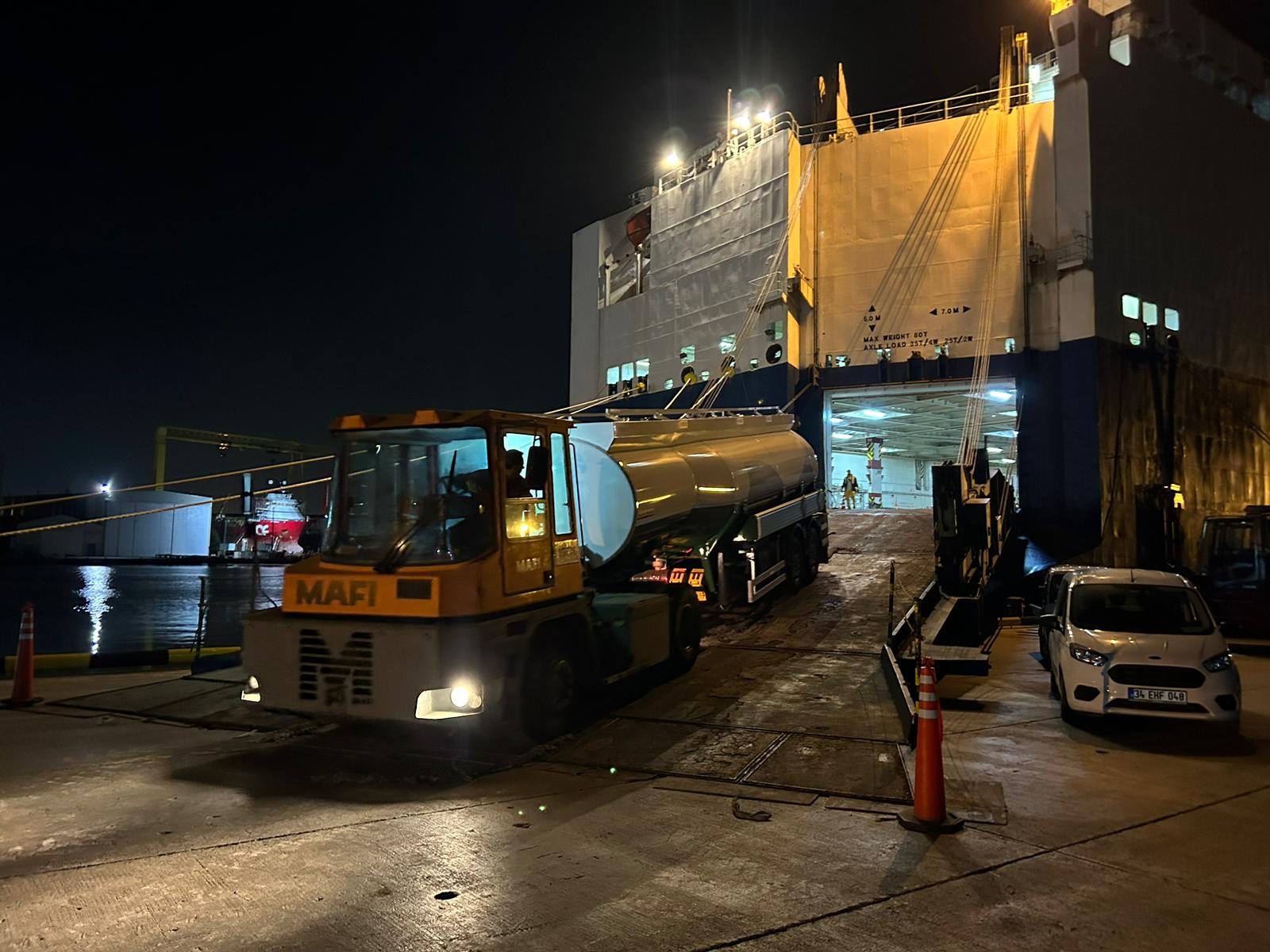

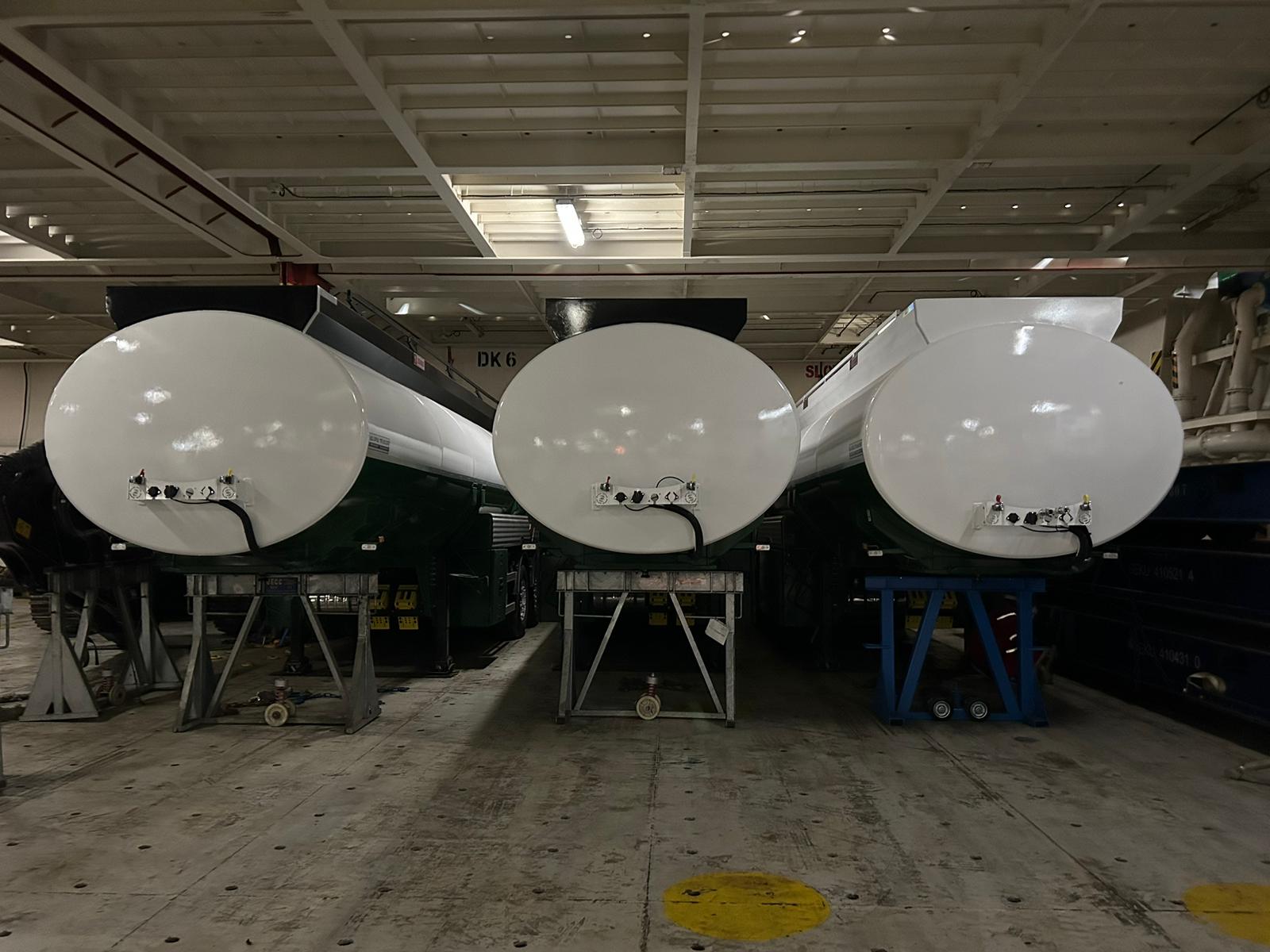

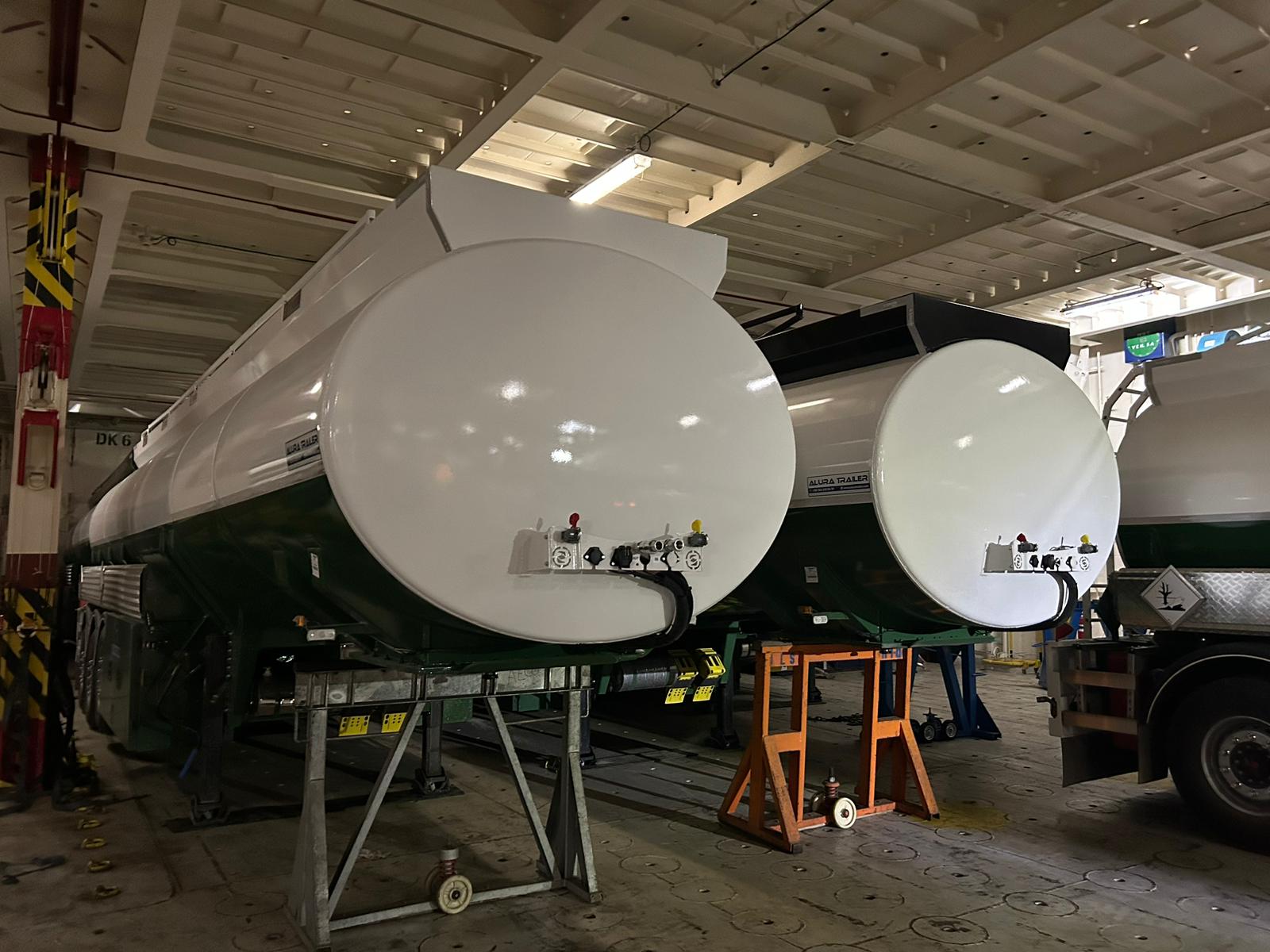

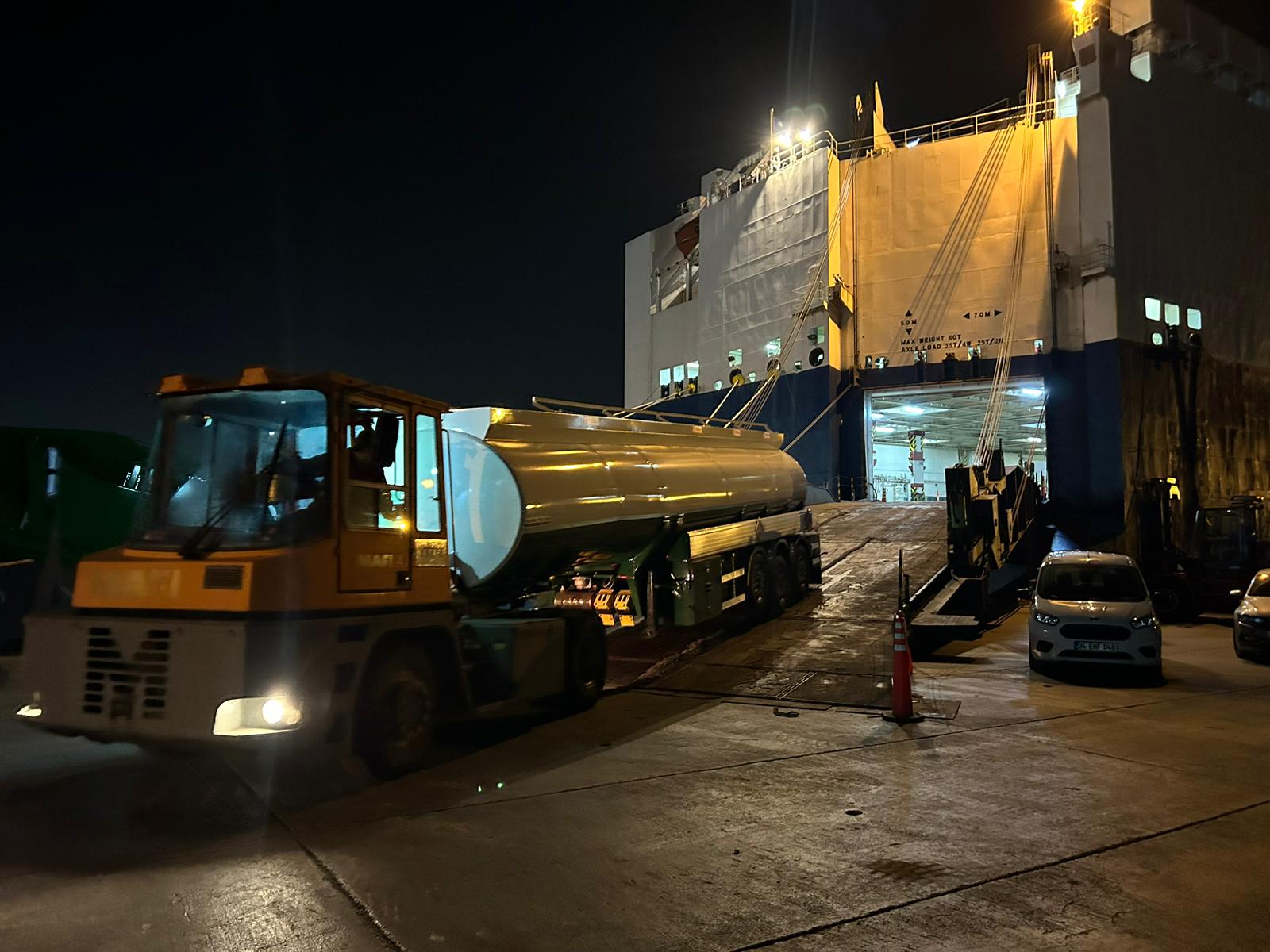

35000 Liters Fuel Tank Trailer
TECHNICAL INFORMATION
| Type | 3 axles steel semi-trailer tanker |
| Design Capacity | 35000 Liters |
| Compartments | 4 |
| Shape | Bottle type |
| Material | ST37 quality |
| Tank Wall Thickness | 4 mm |
| Overall dimension | 12500 x 2550 x 3800 mm (max) |
| Valve Type | 3'' ball discharge valves |
| King-pin | 2’’ diameter, Jost type local brand and matching SAE Standards |
| Chassis Construction | Chassis is made of high - strength ‘’U Section’’ steel profile (ST 6252). |
| Tank Painting |
The surfaces to be painted and cleaned with chemicals, epoxy primers with high corrosion resistance are applied. The colour is made with the last layer paint determined by the buyer.
|
| Filling System | Top Filling System (Optional Bottom Filling) |
RUNNING GEAR
| Axles | SAF Brand electronically controlled 3 Axles – 9 Tons capacity – Disc brake |
| Axle Lifting | Electrical remote system, controlled by driver |
| Brake System | WABCO Brand automatic load adjustment valve, WABCO Brand load balancing distribution valve, Arfesan brand 4 pieces 30x30 emergency, 2 pieces of 30 brake bellows |
| EBS (Electronic Braking System) | The system is compact, 2S2M WABCO brand EU standards |
| Electric System |
SABA brand 7 pins electrical socket (24N/24S) with 7 functions, 24V lighting system is used in EEC standards. 6 sidelights and 1 ABS socket on the sides |
| Number of Tires and Rims | 6+1 |
| Tire Size and Brand | 385/65R22,5 size, Bridgestone or GoodYear |
| Rim Size and Brand | 11,75x22,5 size, Jantsa or Jantaş brand steel rims |
| Landing Gear | Double circuit OMS brand with telescopic mechanical system & capacity of 24tons |
| Suspension System | Air Suspension |
OTHER EQUIPMENTS
| Mudguards |
Full mudguard system in accordance with the regulations, which brings a definite solution to the mud and adds an aesthetic appearance to the vehicle |
| Shock Absorbers | Shock absorber is used to limit excessive axle movement |
| Catwalk & Ladder & Barriers | Equipped with an aluminium catwalk ladder made of non-slip steps in compliance at the rear part of the tank. Side protective barriers are available |
ACCESSORIES
| Stainless Steel Water Tank | Fire Extinguisher Box | Tool Box |
| Manometer | Spare Wheel Key & Hub Cap Key | Spare Tyre Carrier |
